Applications

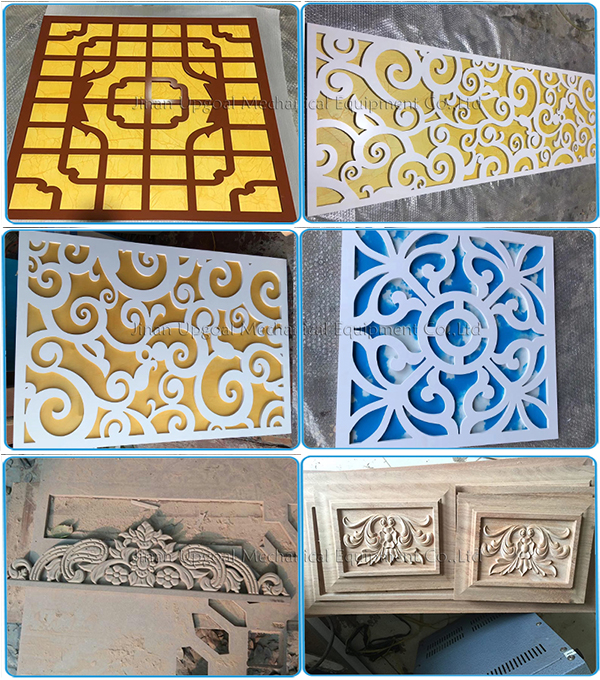

Industry application: Wood work, Advertising Sign&Mark, Acrylic Cutting, Advertising plate, Led Lamp.

Applicable material: Wood, Aluminum sheet, aluminum composite panel, dual-color plate, Mdf, Cristal plate, artifical marble and other metal and non-metal materials.

Working Method: 3D embossment engraving, 2D engraing and Cutting, Bottom Milling.

Features

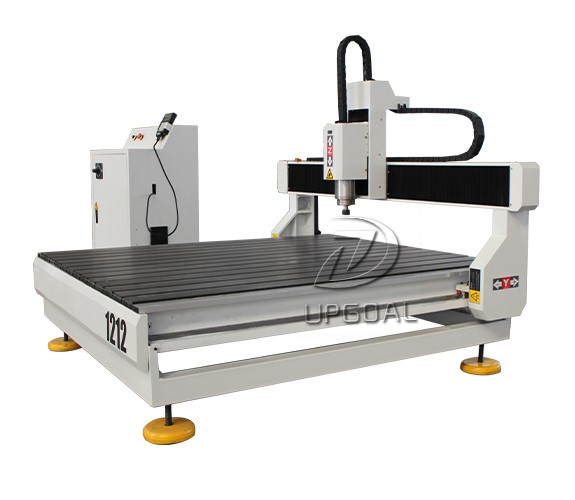

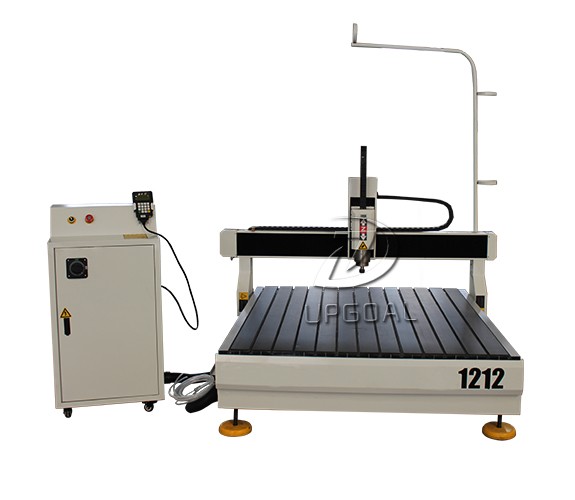

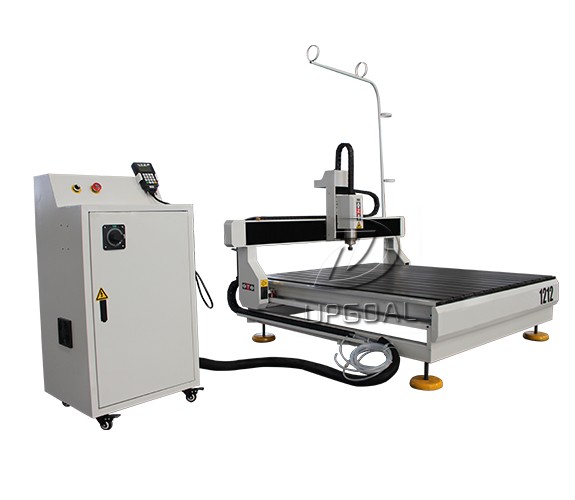

1. Cast iron lathe bed. Stable Running with less Vibration.

2. Desktop type, save space, and with foot pad, stable moving.

3. With Gantry moving type, stable and durable for long time using. Ensure high positioning accuracy.

4. XYZ three axis are with Hiwin Taiwan diameter 20mmLinear square guide rail and block. Lead ball screws transmission for all axis. Durable running with Higher accuracy.

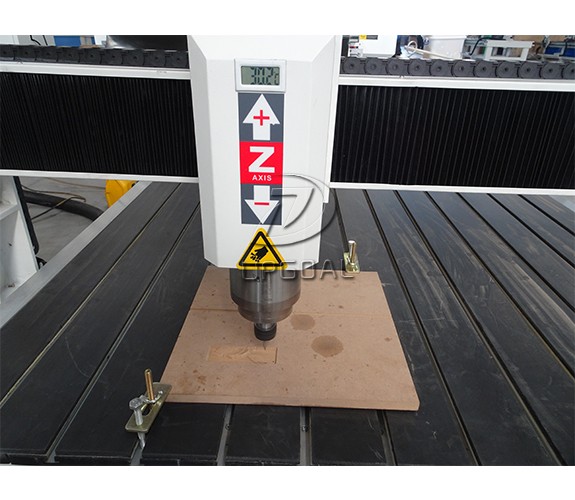

5. Large power 3.2kw China famous Hanqi brand water cooling spindle which is with stable performance, lower noise, powerful and high torque, matched with high-performance frequency inverter. with temperature, better supervise the water cooling temperature of spindle.

6. Dust-Proof design for XZ-axis, protect the guide rail and gears pinon racks from the Dust&Dirt, help to ensure machien working performance.

6. DSP(RichAuto A11E) offline control system with USB interface which is completely off from Computer. More Humanized desgin with Simple and Convenient Handle type operation.With pre-calculation rule, fully excavating potentialities of motors. Enable high processing speed, synchronization of Curve and straight line, more perfect curve working and Spindle startup and stop automatically.

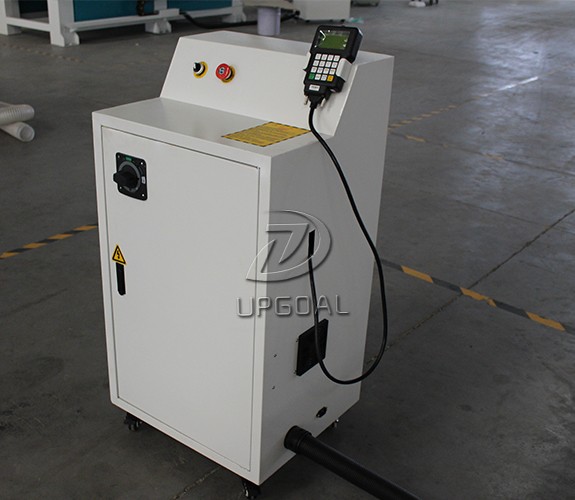

7. Independent contrrol cabinet with famous electric parts, ensuring machine precision & stable moving.

8.  With 3.0kw double bags dust collector, helping to suck dust, milling dust,keeping machine cleaning.

9.Rationalized placement of the electronic parts. Optimized heat dissipation effect. Adpot high quality electornic parts, minimizing fault rate, Adopt high flexible cable and imported electronic parts, electrical design of whole machine is complied with the CE standard.

10. With the function of Break-point memory, power failure resuming and automatic home/origin correction function. The Working can be resumed after unexpected situations or next day.effectively ensure long time working precision.

11.Working Pause, Speed adjust, Working depth adjust at any time while working. Preview the 2D&3D working result With simulation function. Variable Speed is suitable for various materials and industry.

12. Advanced file processing function, can timely correct faults, and good compatibility for Type3/Artcam/Mastercam/Caxa such file. Advanced three dimensional curve forcast algorithm, stable broken line, ensuring the curve moving speed & precision.
